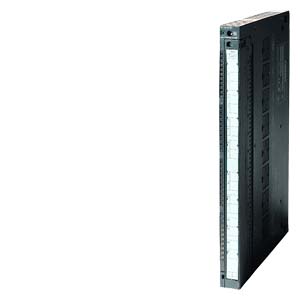

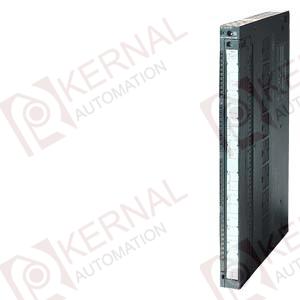

| Supply voltage |
| Load voltage L |
| ● Rated value (DC) |
24 V |
| ● Reverse polarity protection |
Yes |
| Input current |
| from load voltage L (without load), max. |
200 mA |
| from backplane bus 5 V DC, max. |
600 mA |
| Power losses |
| Power loss, typ. |
3.5 W |
| Hardware configuration |
| Slots |
| ● Required slots |
1 |
| Analog inputs |
| Number of analog inputs |
8 |
| Number of analog inputs for voltage/current measurement |
8 |
| Number of analog inputs for resistance measurement |
4 |
| permissible input voltage for voltage input (destruction limit), max. |
18 V |
| permissible input current for current input (destruction limit), max. |
40 mA |
| Input ranges |
| ● Voltage |
Yes |
| ● Current |
Yes |
| ● Thermocouple |
Yes |
| ● Resistance thermometer |
Yes |
| ● Resistance |
Yes |
| Input ranges (rated values), voltages |
| ● 1 to 5 V |
Yes |
| ● Input resistance (1 to 5 V) |
1 MΩ |
| ● -1 V to 1 V |
Yes |
| ● Input resistance (-1 V to 1 V) |
1 MΩ |
| ● -10 V to 10 V |
Yes |
| ● Input resistance (-10 V to 10 V) |
1 MΩ |
| ● -2.5 V to 2.5 V |
Yes |
| ● Input resistance (-2.5 V to 2.5 V) |
1 MΩ |
| ● -250 mV to 250 mV |
Yes |
| ● Input resistance (-250 mV to 250 mV) |
1 MΩ |
| ● -5 V to 5 V |
Yes |
| ● Input resistance (-5 V to 5 V) |
1 MΩ |
| ● -500 mV to 500 mV |
Yes |
| ● Input resistance (-500 mV to 500 mV) |
1 MΩ |
| ● -80 mV to 80 mV |
Yes |
| ● Input resistance (-80 mV to 80 mV) |
1 MΩ |
| Input ranges (rated values), currents |
| ● 0 to 20 mA |
Yes |
| ● Input resistance (0 to 20 mA) |
50 Ω |
| ● 4 to 20 mA |
Yes |
| ● Input resistance (4 to 20 mA) |
50 Ω |
| Input ranges (rated values), thermoelements |
| ● Type B |
Yes |
| ● Type E |
Yes |
| ● Type J |
Yes |
| ● Type K |
Yes |
| ● Type L |
Yes |
| ● Type N |
Yes |
| ● Type R |
Yes |
| ● Type S |
Yes |
| ● Type T |
Yes |
| ● Type U |
Yes |
| Input ranges (rated values), resistance thermometer |
| ● Ni 100 |
Yes |
| ● Input resistance (Ni 100) |
1 MΩ |
| ● Ni 1000 |
Yes |
| ● Input resistance (Ni 1000) |
1 MΩ |
| ● Pt 100 |
Yes |
| ● Input resistance (Pt 100) |
1 MΩ |
| ● Pt 1000 |
Yes |
| ● Pt 10000 |
Yes |
| ● Pt 200 |
Yes |
| ● Input resistance (Pt 200) |
1 MΩ |
| ● Pt 500 |
Yes |
| ● Input resistance (Pt 500) |
1 MΩ |
| Input ranges (rated values), resistors |
| ● 0 to 150 ohms |
Yes |
| ● Input resistance (0 to 150 ohms) |
1 MΩ |
| ● 0 to 300 ohms |
Yes |
| ● Input resistance (0 to 300 ohms) |
1 MΩ |
| ● 0 to 48 ohms |
Yes |
| ● Input resistance (0 to 48 ohms) |
1 MΩ |
| ● 0 to 600 ohms |
Yes |
| ● Input resistance (0 to 600 ohms) |
1 MΩ |
| ● 0 to 6000 ohms |
Yes |
| ● Input resistance (0 to 6000 ohms) |
1 MΩ |
| Thermocouple (TC) |
| Temperature compensation |
| — internal temperature compensation |
No |
| — external temperature compensation with compensations socket |
Yes |
| — external temperature compensation with Pt100 |
Yes |
| — dynamic reference temperature value |
Yes |
| Characteristic linearization |
| ● Parameterizable |
Yes |
| Cable length |
| ● Cable length, shielded, max. |
200 m |
| Analog value creation |
| Integration and conversion time/resolution per channel |
| ● Resolution with overrange (bit including sign), max. |
14 bit |
| ● Integration time, parameterizable |
Yes |
| Encoder |
| Connection of signal encoders |
| ● for current measurement as 2-wire transducer |
Yes |
| ● for current measurement as 4-wire transducer |
Yes |
| ● for resistance measurement with two-wire connection |
Yes |
| ● for resistance measurement with three-wire connection |
Yes |
| ● for resistance measurement with four-wire connection |
Yes |
| Errors/accuracies |
| Operational limit in overall temperature range |
| ● Voltage, relative to input area, ( /-) |
0.38 % |
| ● Current, relative to input area, ( /-) |
0.35 % |
| ● Resistance, relative to input area, ( /-) |
0.5 % |
| ● Resistance thermometer, relative to input area, ( /-) |
0.5 % |
| Basic error limit (operational limit at 25 °C) |
| ● Voltage, relative to input area, ( /-) |
0.15 % |
| ● Current, relative to input area, ( /-) |
0.15 % |
| ● Resistance, relative to input area, ( /-) |
0.15 % |
| ● Resistance thermometer, relative to input area, ( /-) |
0.3 % |
| Galvanic isolation |
| Galvanic isolation analog inputs |
| ● Galvanic isolation analog inputs |
Yes |
| ● between the channels |
No |
| Dimensions |
| Width |
25 mm |
| Height |
290 mm |
| Depth |
210 mm |
| Weights |
| Weight, approx. |
500 g |
| last modified: |
16.09.2014 |
